Introduction

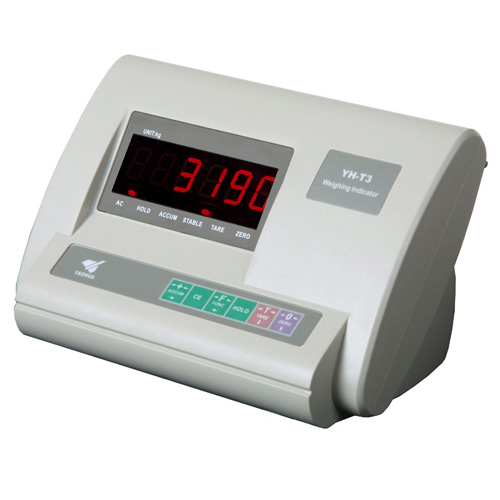

Weighing indicator YH-T3 adopts tri-integral A/D conversion technology, widely applied in weighing system equipped with 1~4 load cell.
Standard function
High precision A/D conversion with readability 30000
Able to auto adjust speed and range of digital filter
Able to display in power-saving mode
Protection for low battery
With built in rechargeable 6V/4AH battery
Optional of RS232 interface with selectable baud rate
Auto/manual accumulation
Able to display at 10-time enlargement (counts≤10000)
Able to lock displaying result
Switch between KG/LB
Technical parameter
| A/D conversion method | Tri-integral |
| A/D conversion speed | ≥40 times/sec. |
| Max. A/D conversion | 720000 |
| Input signal range | 0mV~10mV |
| Input sensitivity | ≥1 μV/e |
| Load cell excitation | DC 5V |
| Max. connection number of load cell | 4 at 350 ohm |
| Verified counts | 3000 |
| Max. external counts | 30000 |
| Division | 1/2/5/10/20/50 optional |
| Display | 6 bits LED, 6 status indications |
| Display range | -99990~99990(d=10) |
| Serial communication(optional) | |
| Optional standard | RS232C |
| Baud Rate | 1200/2400/4800/9600 optional |
| Communication method | continuous sending method |
| Transmission distance≤30m | |
| AC Power | AC 187-242V,49-51Hz |
| DC Power | built-in DC 6V/4Ah battery |
