不锈钢材料，S型结构，胶密，拉向或压向承载。
防护等级IP67
适用于吊钩秤、机改秤、料斗秤及各类电子称重设备。
推荐选择型号：
| xxkg | C3/A5S/B10S | B3G-xx-xxkg-6B |
| xxt | C3/A5S/B10S | B3G-xx-xxt-6B |
| xxlb | A5S/B10S | B3G-xx-xx-6YB |
| xxklb | A5S/B10S | B3G-xx-xxK-6YB |
| 20klb | C3 | B3G-C3-20K-6YB |
| 50kg-10t通过OIML C3级认证 50kg-7.5t(50lb-15klb)通过NTEP A5S/B10S级认证 | ||
技术指标
| 额定载荷 | t | 0.025/0.05/0.1/0.15/0.25/0.5/1/2.5/5/7.5/10 | |||
| lb | 50/75/100/150/200/250/300/500/750/1k/1.5k/2k/2.5k/3k/5k/7.5k/10k/15k/20k | ||||
| 精度 | C3 | C4 | A5M | B10M | |
| 认证 | OIML R60 C4 | III 5000多只 | III 10000多只 | ||
| 最大检定分度数 | n max | 3000 | 4000 | 5000 | 10000 |
| 最小检定分度值 | v min | Emax/10000 | Emax/14000 | Emax/15000 | Emax/10000 |
| 综合误差 | (%FS) | ≤±0.020 | ≤±0.018 | ≤±0.018 | ≤±0.035 |
| 蠕变 | (%FS/30min) | ≤±0.016 | ≤±0.012 | ≤±0.012 | ≤±0.030 |
| 温度对输出灵敏度的影响 | (%FS/10℃) | ≤±0.011 | ≤±0.009 | ≤±0.009 | ≤±0.030 |
| 温度对零点输出的影响 | (%FS/10℃) | ≤±0.015 | ≤±0.010 | ≤±0.010 | ≤±0.030 |
| 输出灵敏度 | (mv/v) | 3.0±0.008 | |||
| 输入阻抗 | (Ω) | 430±60 | |||
| 输出阻抗 | (Ω) | 351±2 | |||
| 绝缘阻抗 | (MΩ) | ≥5000(50VDC) | |||
| 零点输出 | (%FS) | ≤±1.0 | |||
| 温度补偿范围 | (℃) | -35～+70 | |||
| 推荐激励电压 | (V) | 5～12(DC) | |||
| 最大激励电压 | (V) | 18(DC) | |||
| 安全过载范围 | (%FS) | 150 | |||
| 极限过载范围 | (%FS) | 300 | |||
| ATEX等级（可选） | II 1G Ex ia II 1C T4 | II 1D Ex iaD20 T73℃ | II 3G Ex nL II C T4 | ||
| 注：B9D无OIML/NTEP认证. | |||||

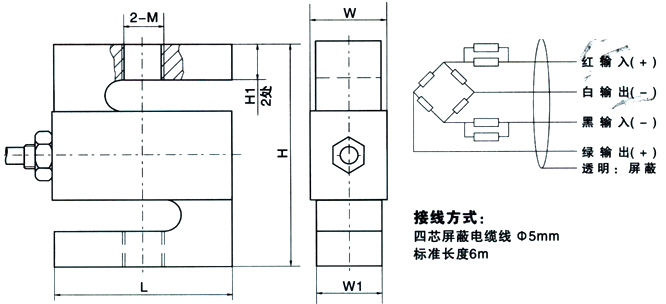

外形尺寸mm(inch)
| 量程 | L | H | W | W1 | M | H1 |
| 25㎏～100㎏ | 50.8(2.0) | 60.96(2.4) | 11.68(0.46) | 15.06(0.59) | M8 | 8.89(0.35) |
| 50lb～300lb | 1/4-28UNF | |||||
| 150㎏～500㎏ | 50.8(2.0) | 60.96(2.4) | 18.03(0.71) | 21.4(0.84) | M12 | |
| 500lb～1.5Klb | 1/2-20UNF | |||||
| 1t | 50.8(2.0) | 60.96(2.4) | 24.38(0.96) | 27.76(1.09) | M12 | |
| 2,2.5Klb | 1/2-20UNF | |||||
| 2.5t | 76.2(3.0) | 99.06(3.9) | 24.38(0.96) | 27.76(1.09) | M20×1.5 | 13.97(0.55) |
| 3Klb | 1/2-20UNF | |||||
| 5klb | 3/4-16UNF | |||||
| 5t | 74.68(2.94) | 99.06(3.9) | 30.74(1.21) | 24.12(1.34) | M20×1.5 | 20(0.79) |
| 10Klb | 3/4-16UNF | |||||
| 7.5t | 87.38(3.44) | 139.7(5.5) | 37.08(1.46) | 40.46(1.59) | M24×2 | 27.5(1.08) |
| 15Klb | 1-14UNS | |||||
| 10t | 112.78(4.44) | 177.8(7.0) | 42.93(1.69) | 46.31(1.82) | M30×2 | 39.9(1.57) |
| 20Klb | 5/4-12UNF |
