Technical Data

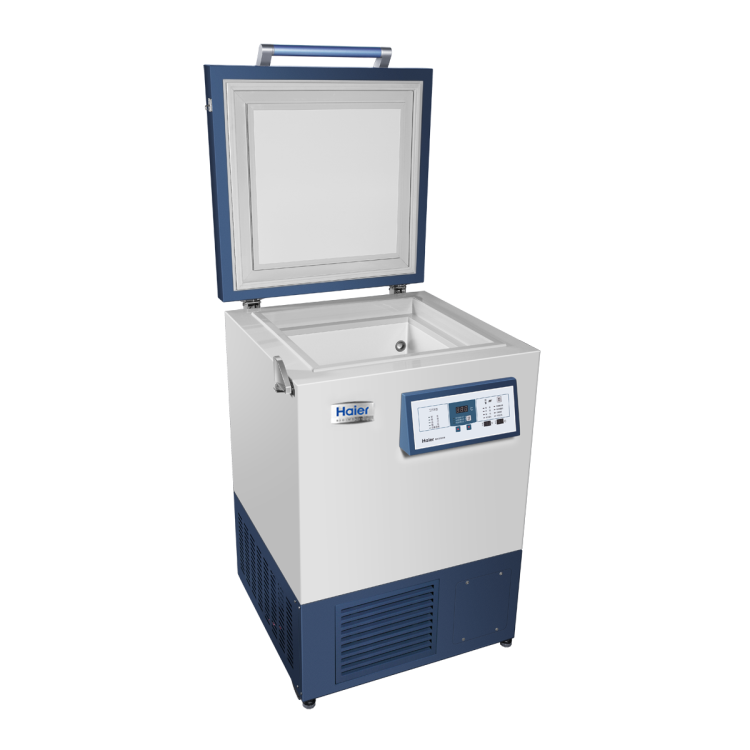

| Type | -86℃ ULT Freeer |
| Cabinet Type | Chest |
| Climate Class | N |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HFC |
| Noise Lever (dB) | 49 |
Performance
| Cooling performance(℃) | -86 |
| Temperature Range(℃) | -40~-86 |
Control

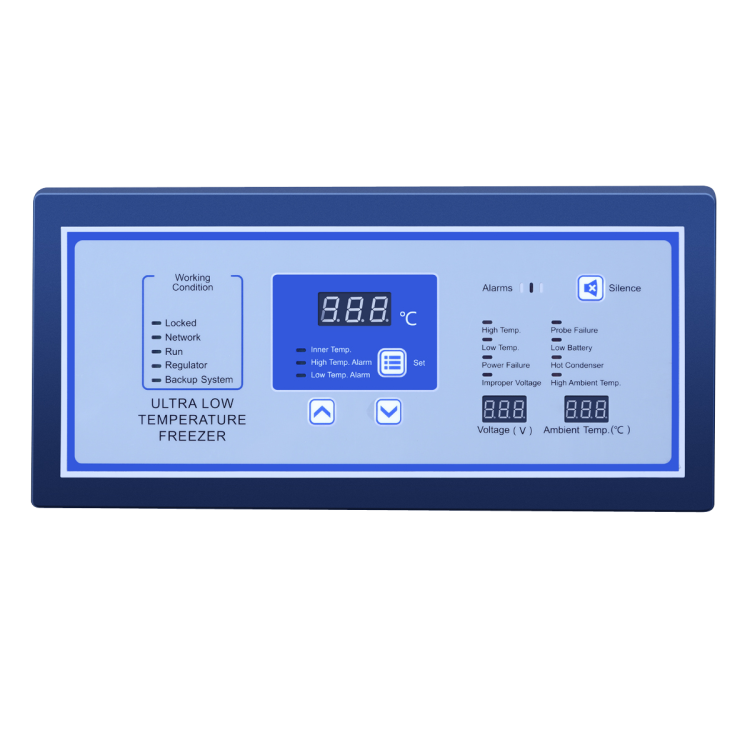

| Controller | Microprocessor |
| Display | LED |
Electrical Data
| Power Supply(V/Hz) | 220-240/50 115/60 220/60 |
| Power(W) | 650 650 650 |
| Electrical Current(A) | 7.5 7.5 12 |
Dimensions
| Capacity(L/Cu.Ft) | 100/3.5 |
| Net/Gross Weight(approx) | 138/160(kg) 304.2/352.7(lbs) |
| Interior Dimensions(W*D*H) | 470*450*480(mm) 18.5*17.7*18.9(in) |
| Exterior Dimensions(W*D*H) | 769*825*1120(mm) 30.3*32.5*44.1(in) |
| Packing Dimensions(W*D*H) | 845*855*1250(mm) 33.3*33.7*49.2(in) |
| Container load (20'/40'/40'H) | 12/24/48 |
Functions
| High/Low Temperature | Y |
| Remote Alarm | Y |
| Hot Condenser | Y |
| Power Failure | Y |
| High/Low Voltage | Y |
| Sensor Error | Y |
| Low Battery | Y |
| High Ambient Temp | Y |
| Door Ajar | N/A |
Accessories
| Caster | Y |
| Foot | Y |

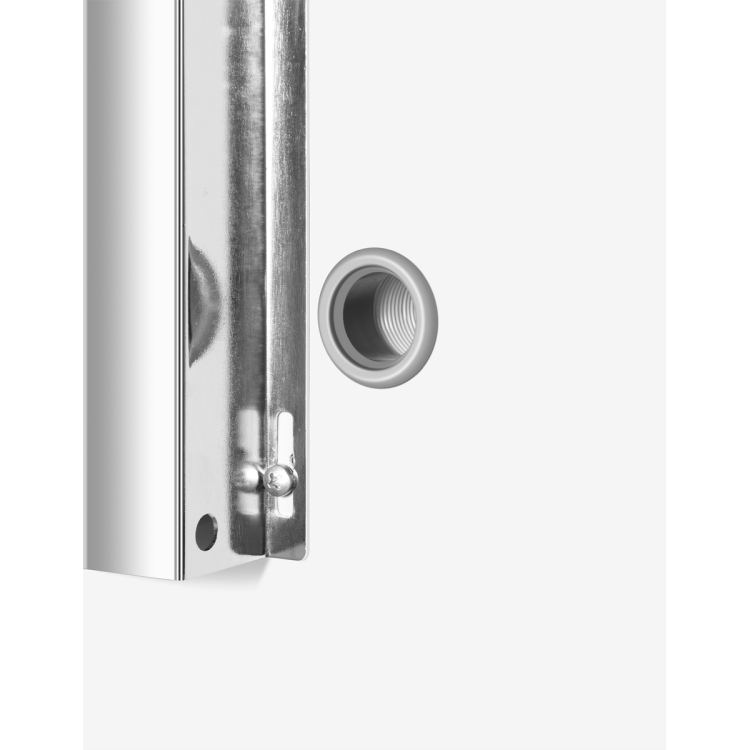

| Test Hole | Y |
| Shelves/Inner Doors | -/1 |
| Temperature Recorder | Optional |
| USB Interface | N/A |
| Rs232/485 Interface | Optional |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Racks & Boxes | Optional |
Others
| Certificate | CE UL |
