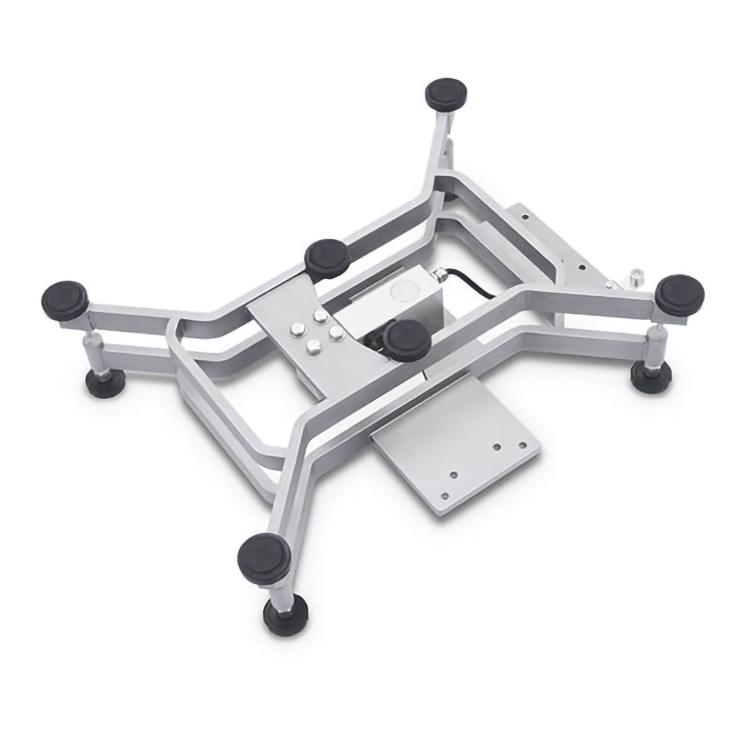

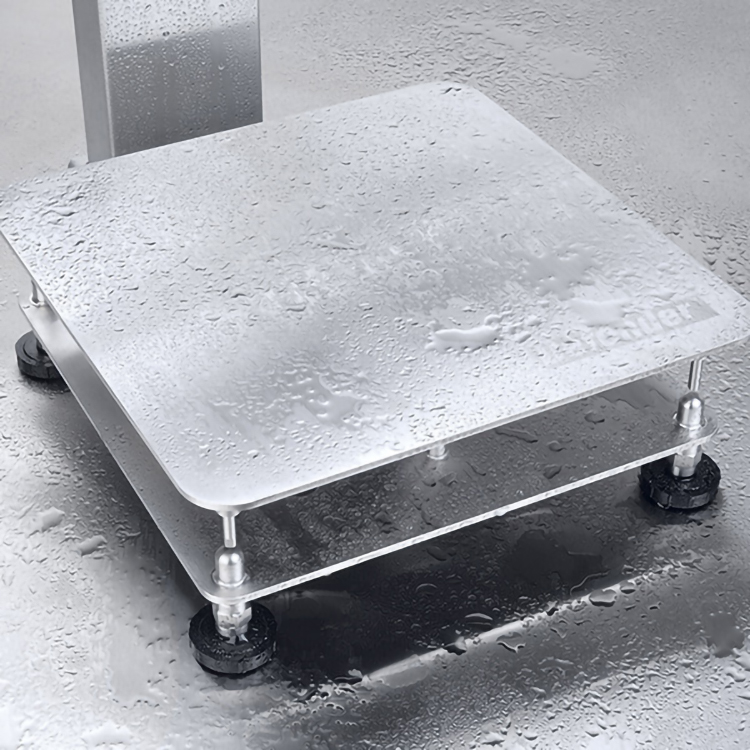

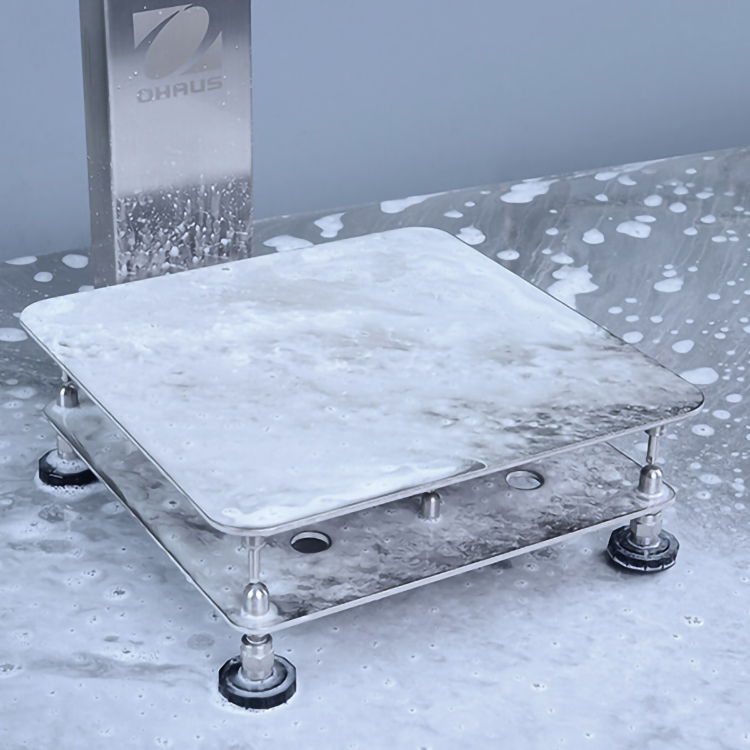

The Defender 6000 Series Extreme Washdown Base is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction
316 stainless steel platform and frame, hermetically-sealed stainless steel load cell, non-slip adjustable rubber feet, level indicator
Design Features
150% overload capacity protection, open design to minimize build-up and support easy cleaning
DEFENDER™ 6000 WASHDOWN BASE MODELS
| MODELS | D3K1S | D6K1S | D15K1R | D30K1R | D60K1L | D150K1L |
| Maximum Capacity | 6 lb (3 kg) | 12 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) | 120 lb (60 kg) | 300 lb (150 kg) |
| Readability | 0.001 lb (0.5 g) | 0.001 lb (0.5 g) | 0.0002 lb (1 g) | 0.005 lb (2 g) | 0.01 lb (5 g) | 0.02 lb (10 g) |
| Platform Size | 250 mm x 250 mm | 250 mm x 250 mm | 300 mm x 300 mm | 300 mm x 300 mm | 19.7 in x 15.7 in (500 mm x 400 mm) | 19.7 in x 15.7 in (500 mm x 400 mm) |
| Legal for Trade | EC Type Approvable; OIML | EC Type Approvable; OIML | EC Type Approvable; OIML | EC Type Approvable; OIML | EC Type Approvable; OIML | EC Type Approvable; OIML |
| Protection Rating | IP69k; IP68 | IP69k; IP68 | IP69k; IP68 | IP69k; IP68 | IP69k; IP68 | IP69k; IP68 |
| Dimensions | 4.2 in (250 mm x 106 mm x 250 mm) | 4.2 in (250 mm x 106 mm x 250 mm) | 4.2 in (300 mm x 106 mm x 300 mm) | 4.2 in (300 mm x 106 mm x 300 mm) | 19.7 in x 5.4 in x 15.7 in (500 mm x 137 mm x 400 mm) (LxHxW) | 19.7 in x 5.4 in x 15.7 in (500 mm x 137 mm x 400 mm) (LxHxW) |
| Net Weight | 5.8 kg | 5.8 kg | 7 kg | 7 kg | 15.6 kg | 37 lb (16.8 kg) |
| Platform Construction | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
