OHAUS FRONTIER ROTORS Offering Flexibility to Maximize Sample Preparation

Product Name：OHAUS FRONTIER ROTORS Offering Flexibility to Maximize Sample Preparation

Category：Centrifuges
Brand： Ohaus
Model：
Introduction：
Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Download Feedback

Prev：Ohaus Frontier 5515 & 5515R High-Speed Microliter Centrifuges

Next：Is the last page

Description
Details
Optional Accessories

Frontier rotors extend the functionality of Frontier centrifuges by increasing the number of tubes of varied types and sizes that can be used in conjunction with each of the centrifuge models. Easy to clean and operate, the rotors are durably constructed to withstand demanding centrifugation.

Applications

Centrifugation Accessory

Display

N/A

Operation

N/A

Communication

N/A

Construction

Aluminum or polypropylene material

Design Features

Easy-installation

FRONTIER™ ROTORS MODELS

MODELS	R-A4xPCR/6	R-A8x2/6M	R-S4X500/7MI	R-A10x50/10MI	R-A12x2/18MI	R-A12x15/6MI
Maximum Speed	6,000 rpm	6,000 rpm	8,000 rpm	10,500 rpm	18,000 rpm	6,000 rpm
Maximum Relative Centrifuge Force (x g)	2,260 g	2,560 g	10,367 g	16,022 g	23,542 g	4,427 g
Maximum Capacity(Rotor)	4 x 0.2 ml PCR8	8 x 1.5 / 2.0 ml		10 x 50 ml	12 x 1.5 / 2.0 ml	12 x 15 ml
Tube diameter without adapter	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml		29mm / 50ml	12 mm / 2.0 ml,1.5 ml	18 mm / 15 ml
Outer/Inner Radius	32 mm	45 mm		130 mm	65 mm	110 mm
Rotor Style	PCR	Angle	Angle	Angle	Angle	Angle
Aerosol tight	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
Acceleration Time (sec)	2 ; 2	2 ; 2	73 ; 575	62 / 753	25 / 240	11 / 102
Angle	45°	45°	25°	38°	40°	32°
Deceleration Time (sec)	2 ; 2	2 ; 2	82 ; 2,317	36 / 2,395	20 / 240	11 / 433
Dimensions	2.99 in x 0.75 in x 2.44 in x 1.22 in (76 mm x 19 mm x 62 mm x 31 mm) (LxHxWxØ)	3.54 in x 0.94 in x 3.54 in x 1.77 in (90 mm x 24 mm x 90 mm x 45 mm) (LxHxWxØ)		10.39 in (264 mm)	5.28 in (134 mm)	8.82 in (224 mm)
Maximum loading height	45 mm	45 mm
Maximum loading weight	27 g‍	27 g		740 g	40.8 g	300 g
Multiple Maximum Speeds	No	No	No	Yes	No	No
Net Weight	0.03 lb (12.2 g)	0.08 lb (38.8 g)		14.8 lb (6.71 kg)	4.28 lb (1.94 kg)	6.05 lb (2.74 kg)
Working Environment	41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)	41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)	14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)
Running Time			10 sec to 99 h 59 min 59 sec
Rotor Recognition			Method Auto
Pre-cool time			Not Determined
Noise Level			≤63±2 dB(A)
Compatible Models				FC5718; FC5718R; FC5816; FC5816R	FC5718; FC5718R	FC5714; FC5718; FC5718R

FRONTIER™ ROTORS MODELS

MODELS	R-A12x5/14MS	R-A18x2SC/13	R-A20x10/12MI	R-A24x2/15M	R-A24x2/16MI	R-A24x2/16MIS
Maximum Speed	14,500 rpm	13,500 rpm	12,000 rpm	15,200 rpm	16,000 rpm	16,000 rpm
Maximum Relative Centrifuge Force (x g)	19,978 g	15,484 g	15,775 g	21,953 g	24,325 g	24,325 g
Maximum Capacity(Rotor)	12 x 5 ml	18 x 2.0 ml	20 x 10 ml	24 x 1.5 / 2.0 ml	24 x 1.5 / 2.0 ml	24 x 1.5 / 2.0 ml
Tube diameter without adapter	14 mm / 5 ml	12 mm / 2.0 ml,1.5 ml	16mm / 10ml	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml
Outer/Inner Radius	85 mm	7.6 cm	98 mm	85 mm	85 mm	85 mm
Rotor Style	Angle	Angle	Angle	Angle	Angle	Angle
Aerosol tight	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Include
Acceleration Time (sec)	24 ; 148	13 / 109	40 / 512	20 ; 153	22 / 251	20 / 251
Angle	45°	45°	30°	45°	45°	45°
Deceleration Time (sec)	17 ; 320	14 / 121	30 / 1,439	17 ; 287	16 / 635	16 / 635
Dimensions	6.81 in x 2.4 in x 6.81 in x 6.81 in (173 mm x 61 mm x 173 mm x 173 mm) (LxHxWxØ)	6.14 in (15.6 cm)	7.87 in (200 mm)	6.85 in x 2.17 in x 6.85 in x 6.85 in (174 mm x 55 mm x 174 mm x 174 mm) (LxHxWxØ)	6.85 in (174 mm)	6.85 in (174 mm)
Maximum loading height	95 mm			45 mm
Maximum loading weight	165 g	68 g	360 g	82 g	81.6 g	81.6 g
Multiple Maximum Speeds	No		No	No	Yes	Yes
Net Weight	3.44 lb (1.56 kg)	0.79 lb (0.36 kg)	9.48 lb (4.3 kg)	1.83 lb (0.83 kg)	3.62 lb (1.64 kg)	4.28 lb (1.94 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)
Compatible Models		FC5513	FC5718; FC5718R; FC5816; FC5816R		FC5714; FC5718; FC5718R; FC5816; FC5816R	FC5714; FC5718; FC5718R; FC5816; FC5816R

FRONTIER™ ROTORS MODELS

MODELS	R-A24x2/15MS	R-A24x2/13MSb	R-A24x2/13Mb	R-A30x2/14MIS	R-A30x2/13MS	R-A30x15/4MI
Maximum Speed	15,200 rpm	13,500 rpm	13,500 rpm	14,000 rpm	13,500 rpm	4,500 rpm
Maximum Relative Centrifuge Force (x g)	21,953 g	17,317 g	17,317 g	20,595 g	19,150 g	2,830 g
Maximum Capacity(Rotor)	24 x 1.5 / 2.0 ml	24 x 1.5 / 2.0 ml	24 x 1.5 / 2.0 ml	30 x 1.5 / 2.0 ml	30 x 1.5 / 2.0 ml	30 x 15 ml
Tube diameter without adapter	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml	18 mm / 15 ml
Outer/Inner Radius	85 mm	8.5 cm	8.5 cm	94 mm	94 mm
Rotor Style	Angle	Angle	Angle	Angle	Angle	Angle
Aerosol tight	Include	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
Acceleration Time (sec)	20 ; 153	15 / 110	15 / 110	25 / 250	29 ; 235	15 / 160
Angle	45°	45°	45°	45°	45°	35°
Deceleration Time (sec)	17 ; 287	14 / 118	14 / 118	25 / 360	27 ; 258	10 / 986
Dimensions	6.89 in x 2.6 in x 6.89 in x 6.89 in (175 mm x 66 mm x 175 mm x 175 mm) (LxHxWxØ)	6.85 in (17.4 cm)	6.85 in (17.4 cm)	7.56 in (192 mm)	7.64 in x 2.6 in x 7.64 in x 7.64 in (194 mm x 66 mm x 194 mm x 194 mm) (LxHxWxØ)	10 in (254 mm)
Maximum loading height	45 mm				45 mm
Maximum loading weight	82 g	82 g	82 g	102 g	102 g	960 g
Multiple Maximum Speeds	No			Yes	No	No
Net Weight	2.76 lb (1.25 kg)	1.37 lb (0.62 kg)	1 lb (0.5 kg)	4.28 lb (1.94 kg)	3.75 lb (1.7 kg)	125 mm / 109 mm
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	7.19 lb (3.26 kg)
Compatible Models		FC5513	FC5513	FC5714; FC5718; FC5718R		FC5714; FC5718; FC5718R; FC5816; FC5816R

FRONTIER™ ROTORS MODELS

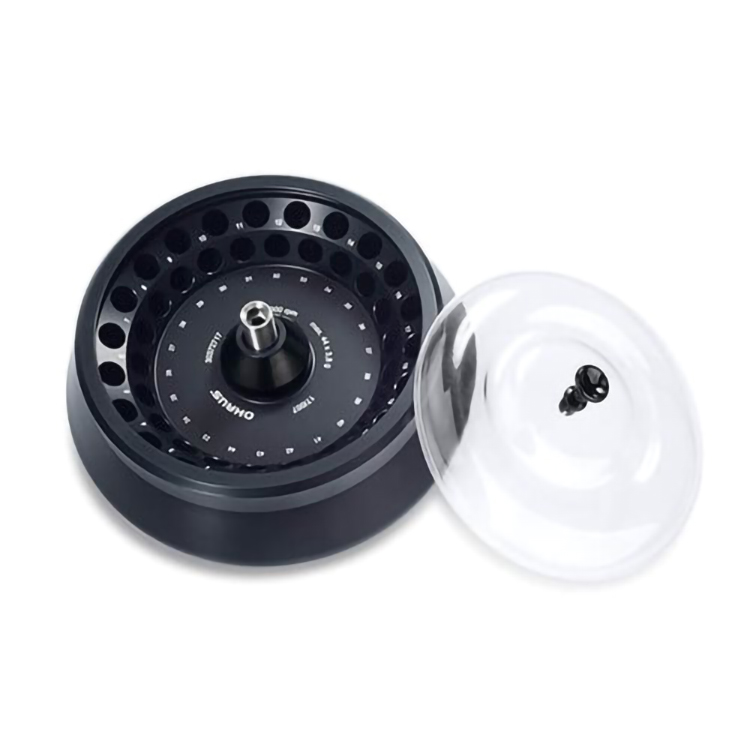

MODELS	R-A44x2/13M	R-A44x2/16MI	R-A4x85/12MI	R-A4xPCR/15	R-A4xPCR/15I	R-A64x0.5/13I
Maximum Speed	13,500 rpm	16,000 rpm	12,000 rpm	15,000 rpm	15,000 rpm	13,500 rpm
Maximum Relative Centrifuge Force (x g)	17,317 g	24,039 g	14,809 g	15,342 g	15,343 g	16,298 g
Maximum Capacity(Rotor)	44 x 1.5 / 2.0ml	44 x 1.5 / 2.0ml	4 x 85 ml	4 x 0.2 ml PCR8	4 x 8-w PCR Strip	64 x 0.5 ml
Tube diameter without adapter	12 mm / 2.0 ml,1.5 ml	12 mm / 2.0 ml,1.5 ml	38mm / 85ml	6 mm / 0.2 ml	N/A	8mm / 0.5ml
Rotor Style	Angle	Angle	Angle	PCR	Angle	Angle
Aerosol tight	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
Acceleration Time (sec)	18 ; 136	22 / 196	60 / 506	17 ; 150	16 / 130	17 / 150
Angle	32° / 55°	32° / 55°	30°	45°	45°
Deceleration Time (sec)	17 ; 133	18 / 204	40 / 1,745	20 ; 95	12 / 130	12 / 170
Dimensions	6.99 in x 2.54 in x 6.99 in x 6.99 in (177.5 mm x 64.5 mm x 177.5 mm x 177.5 mm) (LxHxWxØ)	6.77 in (172 mm)	7.4 in (188 mm)	6.22 in x 2.44 in x 6.22 in x 6.22 in (158 mm x 62 mm x 158 mm x 158 mm) (LxHxWxØ)	4.96 in (126 mm)	6.46 in (164 mm)
Maximum loading height	45 mm	167.2 g		45 mm
Maximum loading weight	150 g		560 g	14 g	14 g	147.2 g
Multiple Maximum Speeds	No	Yes	No	No	No	No
Outer/Inner Radius	84 mm ; 71 mm	84 mm / 71 mm	92 mm	61 mm	61 mm	80 mm / 69 mm
Net Weight	2.94 lb (1.33 kg)	5.32 lb (2.41 kg)	11.56 lb (5.24 kg)	1.46 lb (0.66 kg)	2.72 lb (1.23 kg)	3.36 lb (1.52 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)
Compatible Models		FC5718; FC5718R; FC5816; FC5816R	FC5718; FC5718R; FC5816; FC5816R		FC5718; FC5718R	FC5718; FC5718R
Rotor Style			Angle

FRONTIER™ ROTORS MODELS

MODELS	R-A6x250/8MI	R-A6x50/6M	R-A6x50/13MI	R-A6x50/6MI	R-A6x85/13MI	R-A6x85/14MI
Maximum Speed	8,000 rpm	6,000 rpm	13,000 rpm	6,000 rpm	13,000 rpm	13,500 rpm
Maximum Relative Centrifuge Force (x g)	10,016 g	4,427 g	15,869 g	4,427 g	21,726 g	20,984 g
Maximum Capacity(Rotor)	6 x 250 ml	6 x 50 ml	6 x 50 ml	6 x 50 ml	6 x 85 ml	6 x 85 ml
Tube diameter without adapter	62mm / 250ml	31 mm / 50 ml	29mm / 50ml	29mm / 50ml	38mm / 85ml	38mm / 85ml
Outer/Inner Radius	140 mm	110 mm	84 mm	110 mm	115 mm	103 mm
Rotor Style	Angle	Angle	Angle	Angle	Angle	Angle
Aerosol tight	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
Acceleration Time (sec)	130 / 664	41 ; 91	40 / 446	11 / 101	40 / 2,310	40 / 500
Angle	28°	40°	26°	40°	38°	25°
Compatible Models	FC5816; FC5816R		FC5718; FC5718R; FC5816; FC5816R	FC5714; FC5718; FC5718R	FC5718; FC5718R; FC5816; FC5816R	FC5718; FC5718R
Deceleration Time (sec)	92 / 2,906	52 ; 274	30 / 1,323	11 / 463	40 / 2,313	40 / 1,260
Dimensions	11.18 in (284 mm)	4.57 in x 3.58 in x 4.57 in x 4.57 in (116 mm x 91 mm x 116 mm x 116 mm) (LxHxWxØ)	6.77 in (172 mm)	8.82 in (224 mm)	9.21 in (234 mm)	8.27 in (210 mm)
Maximum loading weight	2,130 g	432 g	564 g	423 g	840 g	840 g
Multiple Maximum Speeds	No	No	Yes	No	Yes	Yes
Net Weight	19.23 lb (8.72 kg)	3.22 lb (1.46 kg)	8.74 lb (3.96 kg)	5.78 lb (2.62 kg)	13.03 lb (5.91 kg)	10.83 lb (4.91 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	32°F – 104°F, 95%RH, non-condensing (0°C – 40°C, 95%RH, non-condensing)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)
Maximum loading height		120 mm

FRONTIER™ ROTORS MODELS

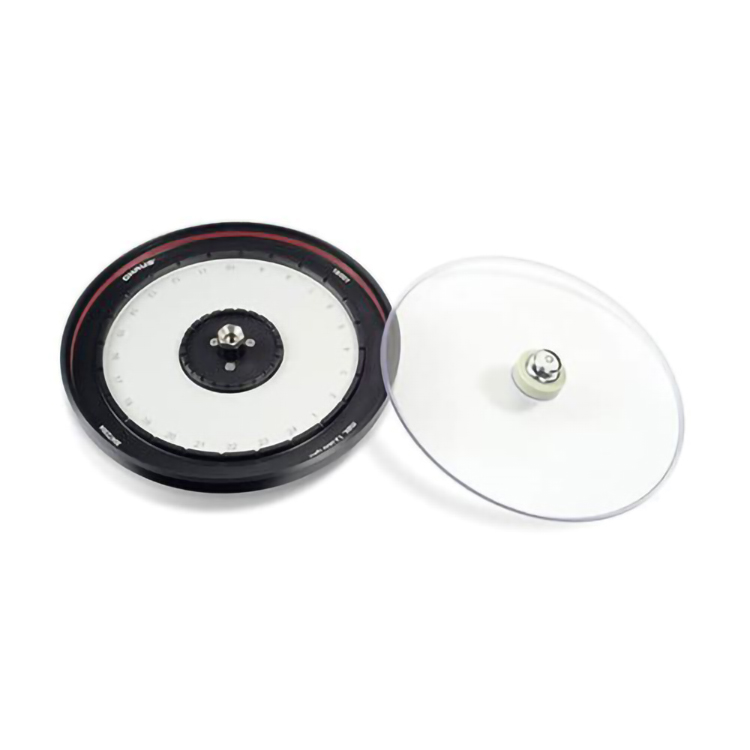

MODELS	R-A8x15/7M	R-A12x15/6M	R-A24xCAP/12	R-A24xCAP/12b	R-S4X750/10MIS	R-S6x5/4
Maximum Speed	6,800 rpm	6,000 rpm	12,000 rpm	13,000 rpm	4,500 rpm	4,000 rpm
Maximum Relative Centrifuge Force (x g)	4,445 g	4,427 g	14,970 g	16,058 g	4,346 g	1,817 g
Maximum Capacity(Rotor)	8 x 15 ml	12 x 15 ml	24 x Capillaries	24 x Capillaries	4 x 750 ml	6 x 5 ml
Tube diameter without adapter	18 mm / 15 ml	18 mm / 15 ml	N/A	N/A		14 mm / 5 ml
Outer/Inner Radius	8.6 cm	110 mm	93 mm	9.3 cm		105 mm
Rotor Style	Angle	Angle	Angle	Angle
Aerosol tight	Not applicable	Not applicable	Not applicable	Not applicable
Acceleration Time (sec)	8 / 35	33 ; 95	15 / 120	20 / 156		7 / 25
Angle	32°	32°	90°	90°		0-90°
Compatible Models	FC5707			FC5513
Deceleration Time (sec)	7 / 25	51 ; 257	15 / 120	22 / 160
Dimensions	6.93 in (17.6 cm)	4.57 in x 3.58 in x 4.57 in x 4.57 in (116 mm x 91 mm x 116 mm x 116 mm) (LxHxWxØ)	2.05 in x 7.95 in x 7.95 in x 7.95 in (52 mm x 202 mm x 202 mm x 202 mm) (HxLxØxW)	7.95 in (20.2 cm)		1.18 in x 2.4 in x 2.4 in x 2.4 in (30 mm x 61 mm x 61 mm x 61 mm) (HxLxØxW)
Maximum loading weight	200 g	300 g	4.8 g	4.8 g		240 g
Net Weight	1.72 lb (0.78 kg)	3.42 lb (1.55 kg)	1.39 lb (0.63 kg)	0.31 lb (0.14 kg)	10 sec to 99 h 59 min 59 sec	0.93 lb (0.42 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	32°F – 104°F, 95%RH, non-condensing (0°C – 40°C, 95%RH, non-condensing)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)	32°F – 104°F, 95%RH, non-condensing (0°C – 40°C, 95%RH, non-condensing)
Maximum loading height		120 mm	30 mm			75 mm
Multiple Maximum Speeds		No	No		No‍	No
Rotor Recognition Method					Auto‍
Rotor Compatibility Swing out					4x750ml ID Sealable
Pre-cool time					Not Determined
Noise Level					≤63±2 dB(A)
Rotor Style					Swing out	Swing out
Aerosol tight					Include	Not applicable
Acceleration Time (sec)					47 ; 483‍	8 / 35
Deceleration Time (sec)					49 ; 1,287

FRONTIER™ ROTORS MODELS

MODELS	R-S16x50/4MI	R-S6xMTP/4MI	R-S4x100/4MI	R-S4x100/5MIS	R-S4x250/4MI
Maximum Speed	4,500 rpm	4,500 rpm	4,500 rpm	5,000 rpm	4,500 rpm
Maximum Relative Centrifuge Force (x g)	3,735 g	2,716 g	3,350 g	3,885 g	3,780 g
Maximum Capacity(Rotor)	16 x 50 ml	2 x 3MTP	4 x 100 ml	4 x 100 ml	4 x 250 ml
Tube diameter without adapter	N/A	N/A	N/A	N/A	N/A
Outer/Inner Radius	165 mm	120 mm	148 mm	146 mm	167 mm
Rotor Style	Swing out	Swing out	Swing out	Swing out	Swing out
Aerosol tight	Not applicable	Not applicable	Not applicable	Not applicable	Not applicable
Acceleration Time (sec)	311 / 34	20 / 452	14 ; 110	14 / 110	34 / 309
Angle	0-90°	0-90°	0-90°	0-90°	0-90°
Compatible Models	FC5816; FC5816R	FC5714; FC5718; FC5718R; FC5816; FC5816R	FC5718R; FC5718; FC5714	FC5714; FC5718; FC5718R	FC5816; FC5816R
Deceleration Time (sec)	311 / 36	15 / 616	14 ; 170	14 / 170	34 / 458
Dimensions	13.15 in (334 mm)	9.61 in (244 mm)	11.81 in (300 mm)	11.65 in (296 mm)	13.31 in (338 mm)
Maximum loading weight	2,228 g‍	620 g	1,360 g	1,860 g	2,144 g
Multiple Maximum Speeds	No	No	No	Yes	No
Net Weight	‍6.53 lb (2.96 kg)	3.62 lb (1.64 kg)	3.58 lb (1.62 kg)	3.62 lb (1.64 kg)	8.96 lb (4.06 kg)
Working Environment	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)	-4°F – 122°F, 95%RH, non-condensing (Temperature: -20ºC – 50ºC, Humidity:<95%)
